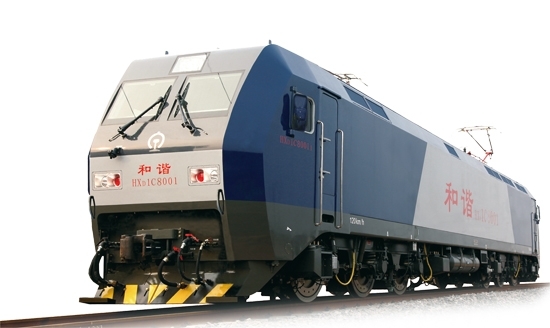

HXD1C, an AC transmission electric locomotive of 7200kw, is a mainline locomotive produced under technology translation from CSR Zhuzhou Electric Locomotive Co,. Ltd. The locomotive is of Co-Co axle arrangement and of six axles. Rated tractive power at the wheel rim and regenerative braking power are not less than 7200kw; the starting tractive effort when axle load is 25 ton shall be of 570kN; the starting tractive effort when axle load is 23 ton shall be 520kN; maximal testing speed (new wheel) reaches 132 km/h and maximal operation speed reaches 120km/h.
Characteristics of performance: The main tractive circuit adopts IGBT-module four-quadrant rectifier and inverter. The locomotive is of integral load-bearing car body and double driver’s cab. It is capable of triple locomotives multiple-unit control and display through WTB bus. With independent ventilation, the locomotive is equipped with automatic braking, independent braking, emergency braking and train pipe flow monitoring.
Basic Parameter:
1.Purpose:Freight transport
2.Gauge:1435mm
3.Electric transmission method:AC-DC-AC transmission
4.Axle arrangement:Co-Co
5.Wheel diameter (New/half worn/fully-worn) :1250mm/1200mm/1150 mm
6.Axle load:23 t＋2 t
7.Maximal operation speed:120km/h
8.Continuous Rated Speed of Locomotive
axle load at 23t 70 km/h
axle load at 25t 65 km/h
9.Continuous Tractive Effort of Locomotive
axle load at 23t 370kN
axle load at 25t 400kN
10.Starting Tractive Effort of Locomotive
axle load at 23t ≥520 kN
axle load at 25t ≥570 kN
11.Constant Power Speed Range of Traction Characteristics
axle load at 23t 70 km/h～120 km/h
axle load at 25t 65 km/h～120 km/h
12.Maximal Electric Braking
axle load at 23t 370kN
axle load at 25t 400 kN
13.Min. Radius of Curvature Negotiated:300±20m
14.Wheel Base:2250mm＋2000 mm
15.Locomotive Total Wheel Base:16260 mm
16.Transmission Ratio:6.235(106/17)
17.Distance between front and rear coupler centers:22670 mm
18.Car Body width:3100mm
