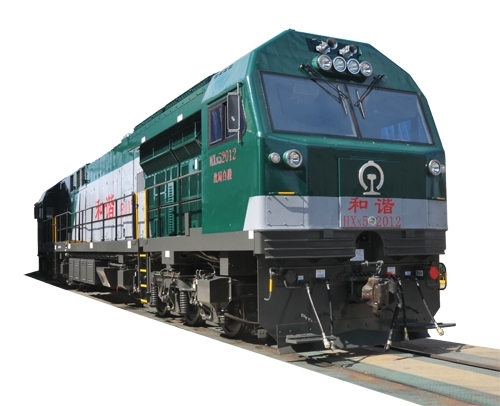

HXN5 Locomotive (with double driver’s cabs) is a mainline freight diesel locomotive with AC transmission. The locomotive is fitted with GEVO 16 diesel with rated power of 4660kw. It is of AC electrical transmission and control system, double driver’s cabs, under-frame load bearing structure with outer corridor；the bogie adopts three independently driven axles; the traction motors use rolling bearing to hang on those axes in same orientation; Traditional pedestal axle box positioning, welded bogie frame and center-pin traction are utilized. The locomotive is fitted with rotary screw air compressor, CCBⅡelectro-pneumatic brake system.. The rated power (the input power of main alternator) of the locomotive reaches 4400kw, the maximum starting tractive effort is 620kN, the continuous tractive effort is 565kN, and the maximum running speed and maximum constant power speed is 120kn/h. Triple locomotives multiple-unit operation can be realized for this locomotive whose axle load is 25t.
Axle control type AC transmission technology and high-power IGBT inverter are utilized on the HXN5 Locomotive（with double driver’s cabs）. The locomotive is characterized by excellent anti-slide and anti-slip performance, high wheel rim efficiency, high adhesion utilization, quick startup, good dynamic performance and brake performance. The locomotive adopts modularization design, manufacture and assembly with easy maintenance and repair. With AESS control system, the locomotive could have an automatic control of engine start and stop. The locomotive is fully in line with the development direction of “high speed and heavy load”. Major technical and economic indexes have reached advanced level in the world, such as locomotive traction, control, braking, diesel fuel consumption rate and emission.
Major Parameters:
Axle Arrangement:C0-C0
Suspension Method:Axle hung with rolling bearing
Braking Method:Tread braking
Continuous Power（maximum service power）:4660kW
Dynamic Brake Power:4003 kW
Max.Power:4400kW
Locomotive Total Weight:150t
Continuous Tractive Effort:565kN
Axle Load:25t
Starting Tractive Effort:620kN
Coupler Center Line Distance:23500mm
Continuous Speed:25 km/h
Gauge:1435mm
Max.Speed:120km/h
Purpose:Mainline Freight Locomotive
Gauge:1435mm
Clearance Limit:In accordance with GB 146.1
Transmission Method:AC-DC-AC
Rated Power:4400kW
Axle Arrangement:Ｃ0－Ｃ0
Wheel Diameter:1050mm
Axle Load：(25±0.75)t
Max. Running Speed:120km/h
Continuous Speed:25km/h
Max. Constant Power Speed:120km/h
Locomotive Tractive Effort at the Wheel Rim:
Max. Startup Tractive Effort (with calculated wheel diameter) :620kN
Continuous Tractive Effort:565kN
Min.curvature radius negotiated:145m
Locomotive Configuration:
Length( distance between two couplers’ center lines):23500mm（22296mm）
Width:3119mm
Height:4770 mm
