Blind Rivet-Mechanical rivet
Wth unique push-and-pull installation design, the LMB fastener is strong enough for railway car and equipment, auto suspensions and retrieval racks of shaft steel construction. LMB series products was designed for high-tensile application .
It is easy for the operator to handle and install, it won't need special training for the operator, save your time and money.
Diameter:5mm、6mm、8mm、10mm、12mm、16mm
|

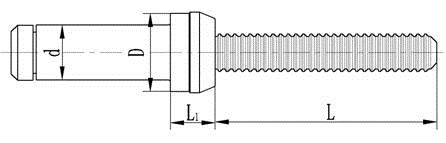

Diameter
|
d
|
D
|
L1
|
L
|
|||
|
min
|
max
|
min
|
max
|
min
|
max
|
||
|
3/16″
|
0.196
|
0.206
|
0.276
|
0.286
|
0.152
|
0.168
|
0.785
|
|
1/4″
|
0.262
|
0.275
|
0.368
|
0.380
|
0.205
|
0.225
|
0.860
|
|
5/16″
|
0.332
|
0.346
|
0.468
|
0.478
|
0.266
|
0.278
|
1.285
|
|
3/8″
|
0.393
|
0.411
|
0.553
|
0.563
|
0.315
|
0.327
|
1.230
|
|
1/2″
|
0.529
|
0.544
|
0.740
|
0.755
|
0.415
|
0.438
|
1.530
|
|
5/8″
|
0.662
|
0.685
|
0.925
|
0.941
|
0.507
|
0.545
|
1.710
|
